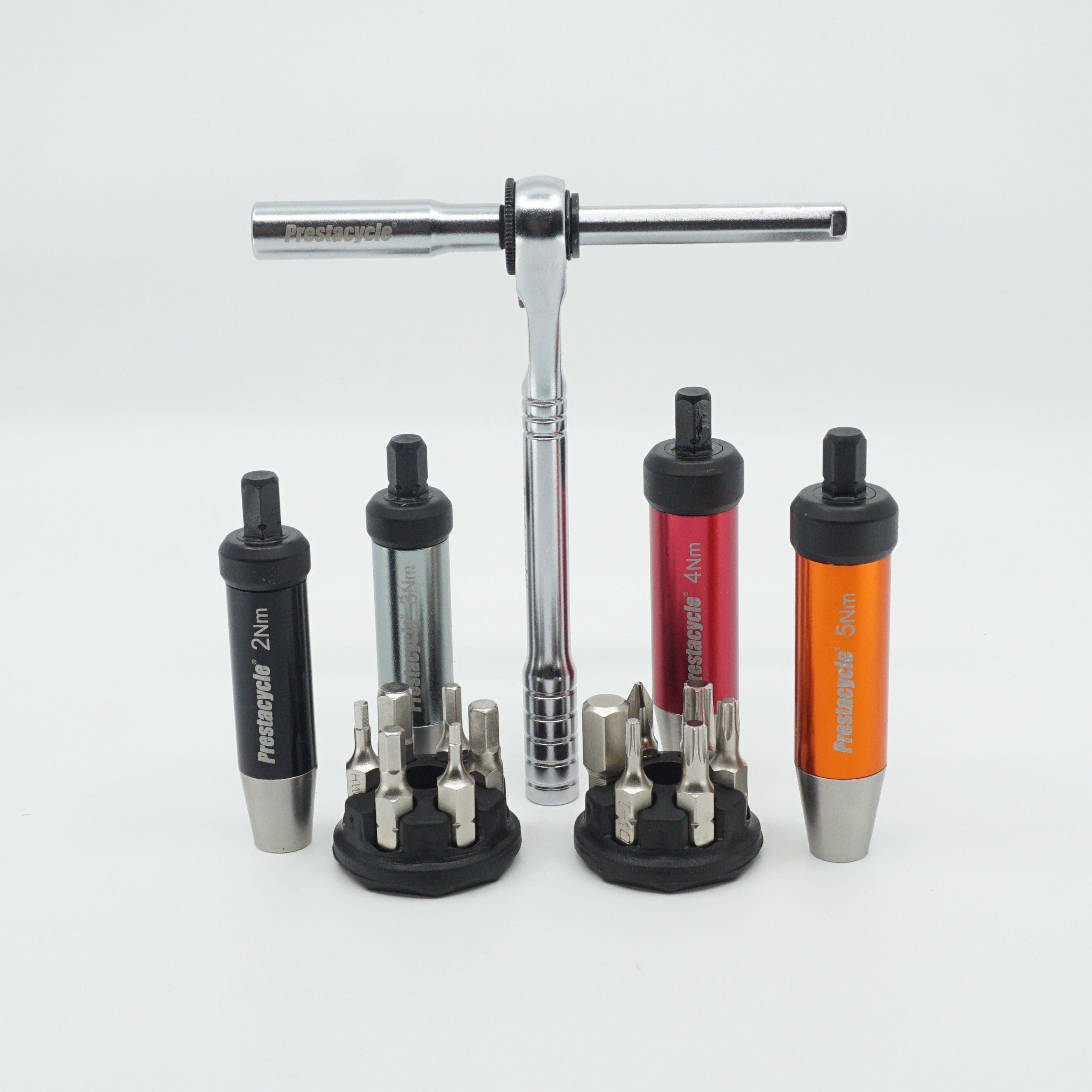

TorqTubes T-Handle Bundle

Complete Professional Torque System

• Includes 2 Nm, 3 Nm, 4 Nm and 5 Nm TorqTubes
• Includes PrestaRatchet T-Handle Pro Set
• Four dedicated preset torque values cover common low-torque bicycle fasteners
• ±4% TorqTube torque accuracy
• No torque setting or adjustment required
• Select the required TorqTube, install the appropriate bit and tighten

Premium TorqTube Technology

• Patented preset torque-limiting mechanical overrun
• Full mechanical overrun provides unmistakable tactile feedback when preset torque is reached
• Automatically resets after every torque cycle
• Factory calibrated
• Rated for 10,000+ torque cycles at preset torque
• Internal spring design prevents calibration drift
• No scheduled calibration service required
• Built-in over-torque protection helps protect the torque mechanism

Direct-Drive Unscrewing

• TorqTubes provide direct mechanical drive when operated counterclockwise
• Fasteners can be loosened without removing the TorqTube
• Safe for unscrewing up to 30 Nm
• Unscrewing does not affect torque calibration
• Tighten and loosen with the same assembled tool

All-Metal Professional Construction

• Steel internal torque mechanism
• Anodized aluminum outer housing
• Compact inline design
• Impact resistant
• Designed for professional workshop, workstand and race-support use

Professional T-Handle System

• Patented reversible ratchet with thumb-wheel operation
• Ratchet rated for up to 60 Nm
• Included 100 mm extension adds reach and can be positioned to create a T-handle
• Standard 1/4" hex interface throughout the system
• Remove the TorqTube to use the ratchet as a conventional high-strength bicycle service tool
• Compatible with standard 1/4" hex bits and Prestacycle accessories

Complete Bicycle Bit Set

Includes 12 S2 steel bicycle tool bits:

• Hex: H2, H2.5, H3, H4, H5, H6, H8
• Torx: T10, T20, T25, T30
• Phillips: PH1
• Includes two round bit holders that can be carried on the tool shafts or used as desktop tool stands

Built for Professional Workflow

Instead of repeatedly changing the setting on a conventional torque wrench, each TorqTube provides a dedicated preset torque value. Mechanics can move between 2 Nm, 3 Nm, 4 Nm and 5 Nm simply by selecting the corresponding TorqTube.

This makes the system particularly well suited to repetitive bicycle assembly, pre-ride inspection, race preparation and professional workshop service where the same torque values are used repeatedly.

Product Information

Product Type: Professional Preset Torque Limiter & T-Ratchet Tool Set
Product Category: Torque Tools
Primary Application: Bicycle Assembly and Service
Bike Compatibility: Road, Gravel, MTB, BMX, Cyclocross, Commuter, Touring, E-Bike
Assembly Required: No
Family: TorqTube
Model: 2Nm / 3Nm / 4Nm / 5Nm Professional Set
Manufacturer: Prestacycle
Brand: Prestacycle
Bundle SKU: 93800B
EAN:
UPC:
Country of Origin: Taiwan
Country of Design: USA
Warranty: 5 Years

Torque Performance

Included Preset Torque Values: 2 Nm, 3 Nm, 4 Nm, 5 Nm
Number of TorqTubes: 4
Torque System: Preset Torque Limiter
Torque Limiting Method: Internal Mechanical Overrun
Preset Torque Setting: Factory Set
Preset Torque Adjustable: No
Torque Units: Nm
Torque Accuracy: ±4%
Torque Release Feedback: Full Mechanical Overrun
Torque Limiting Reset: Automatic
User Adjustable: No
User Calibration Required: No
Calibration Method: Factory Calibrated
Calibration Stability: Spring Design Prevents Calibration Drift
Rated Torque Cycles: 10,000+ @ Preset Torque per TorqTube
Over-Torque Protection: Yes
Routine Maintenance: None Required

TorqTube Operation

Clockwise Operation: Torque Limiting
Counterclockwise Operation: Direct Drive for Unscrewing (No Torque Limiting)
Safe for Unscrewing: Yes
Maximum TorqTube Unscrewing Torque: 30 Nm
Power Tool Compatible: Yes, With Appropriate Adapter
Power Drill Compatible: Yes, With Appropriate Adapter
Power Screwdriver Compatible: Yes, With Appropriate Adapter
Power Tool Adapter Included: No

TorqTube Construction

Construction: All-Metal
Body Material: Steel with Aluminum Outer Housing
Torque Mechanism Material: Steel
Outer Housing Finish: Anodized Aluminum
2Nm Color: Black
3Nm Color: Grey
4Nm Color: Red
5Nm Color: Orange
Impact Resistance: Withstands Drops Exceeding 10 ft (3 m) Without Damage or Loss of Calibration
Patent Status: Patented
Primary Technology: Patented Preset Torque-Limiting Mechanical Overrun

Drive & Compatibility

TorqTube Drive Interface: Standard 1/4" Hex
TorqTube Input Interface: Standard 1/4" Hex
TorqTube Output Interface: Standard 1/4" Hex
Compatible Driving Tools: Prestacycle Ratchets and Compatible Standard 1/4" Hex Driving Tools
Compatible Bits: Standard 1/4" Hex Bits
Included Driving Tool: PrestaRatchet T-Ratchet
Ratchet Maximum Torque: 60 Nm

T-Ratchet System

Ratchet Type: Reversible T-Ratchet
Ratchet Interface: Standard 1/4" Hex
Ratchet Control: Thumb Wheel
Reverse Control: Top-Mounted Reverse Knob
Maximum Ratchet Torque: 60 Nm
Extension Length: 100 mm (4 in)
T-Handle Function: Yes
Extension Function: Yes

Included Items

2Nm TorqTube: 1
3Nm TorqTube: 1
4Nm TorqTube: 1
5Nm TorqTube: 1
PrestaRatchet T-Ratchet: 1
100 mm Extension: 1
Round Bit Holders / Tool Stands: 2
S2 Steel 1/4" Hex Bits: 12
Carrying Case Included: No

Included Bits

Hex Bits: H2, H2.5, H3, H4, H5, H6, H8
Torx Bits: T10, T20, T25, T30
Phillips Bit: PH1
Total Bits: 12

Applications

Preset Torque Function: Yes
Available Preset Values in Set: 2 Nm, 3 Nm, 4 Nm, 5 Nm
Conventional Ratchet Function: Yes
Precision Final Tightening: Yes
Fast Tightening: Yes
Fast Loosening: Yes
Professional Shop Use: Yes
Home Mechanic Use: Yes
Travel Use: Yes
Race Support Use: Yes

Dimensions & Weight

2Nm TorqTube: 68 × 15.5 mm maximum; 51 g
3Nm TorqTube: 68 × 15.5 mm maximum; 51 g
4Nm TorqTube: 75.75 × 18.1 mm maximum; 76 g
5Nm TorqTube: 75.75 × 18.1 mm maximum; 76 g
T-Ratchet Weight: 50 g
100 mm Extension Weight: 44 g
Total Bundle Weight: 432 g

Service & Support

Scheduled Service Required: None
TorqTube Replacement Parts Available: No
Replacement Bits Available: Yes
Storage Recommendation: Dry Environment
Packaging Type: Box / Sealed Poly Bag

Specifications subject to change without notice. Prestacycle continually improves products and reserves the right to update specifications without prior notice.
