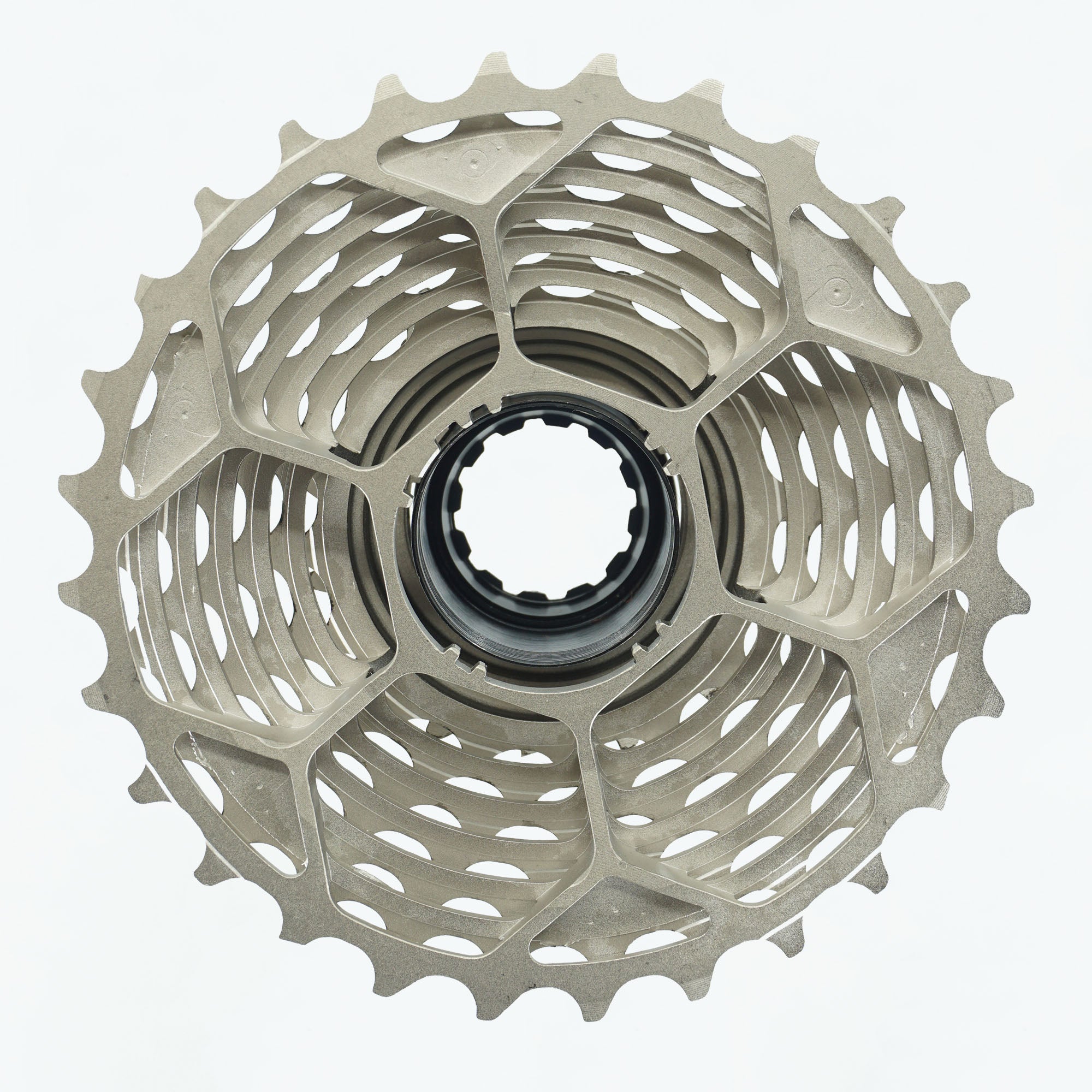

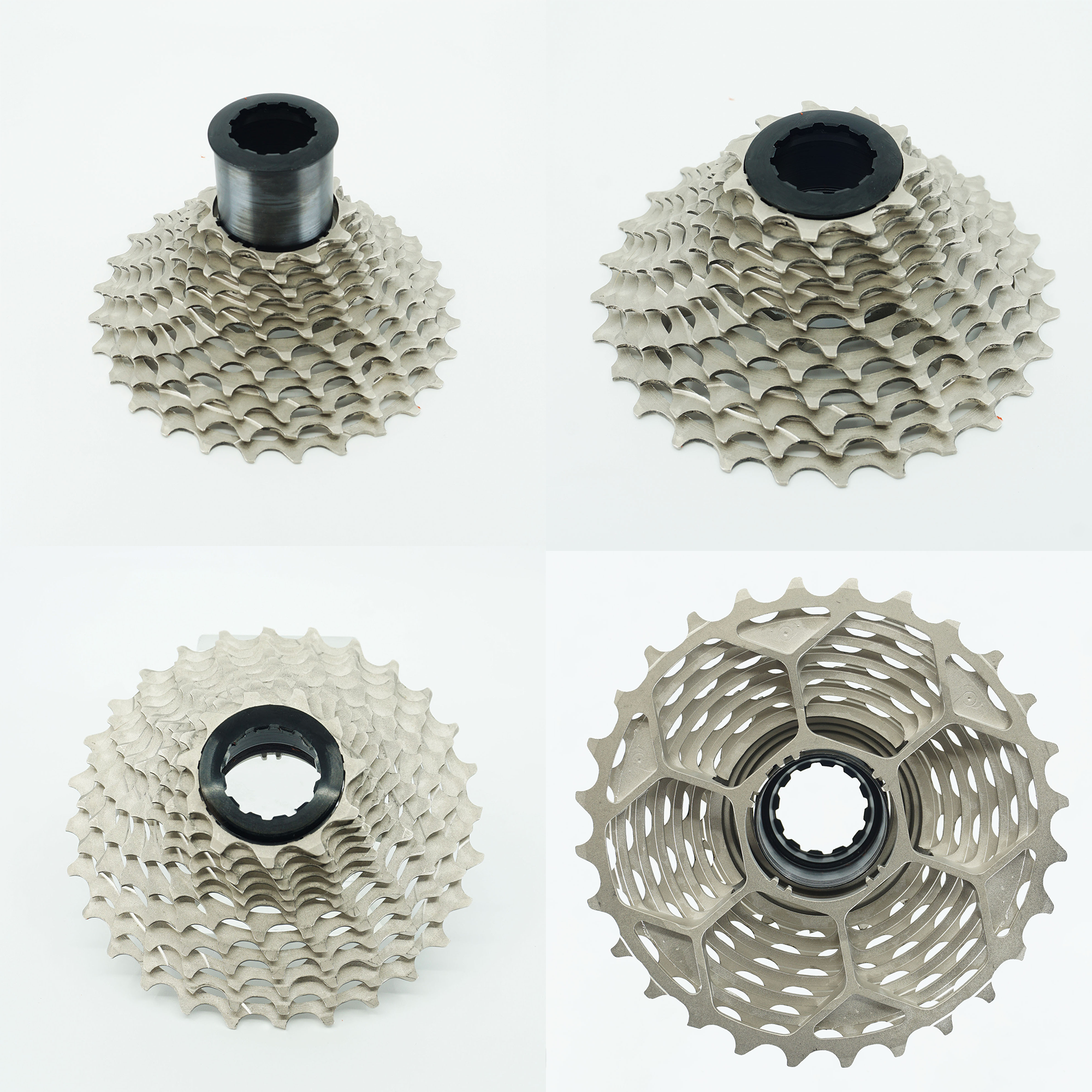

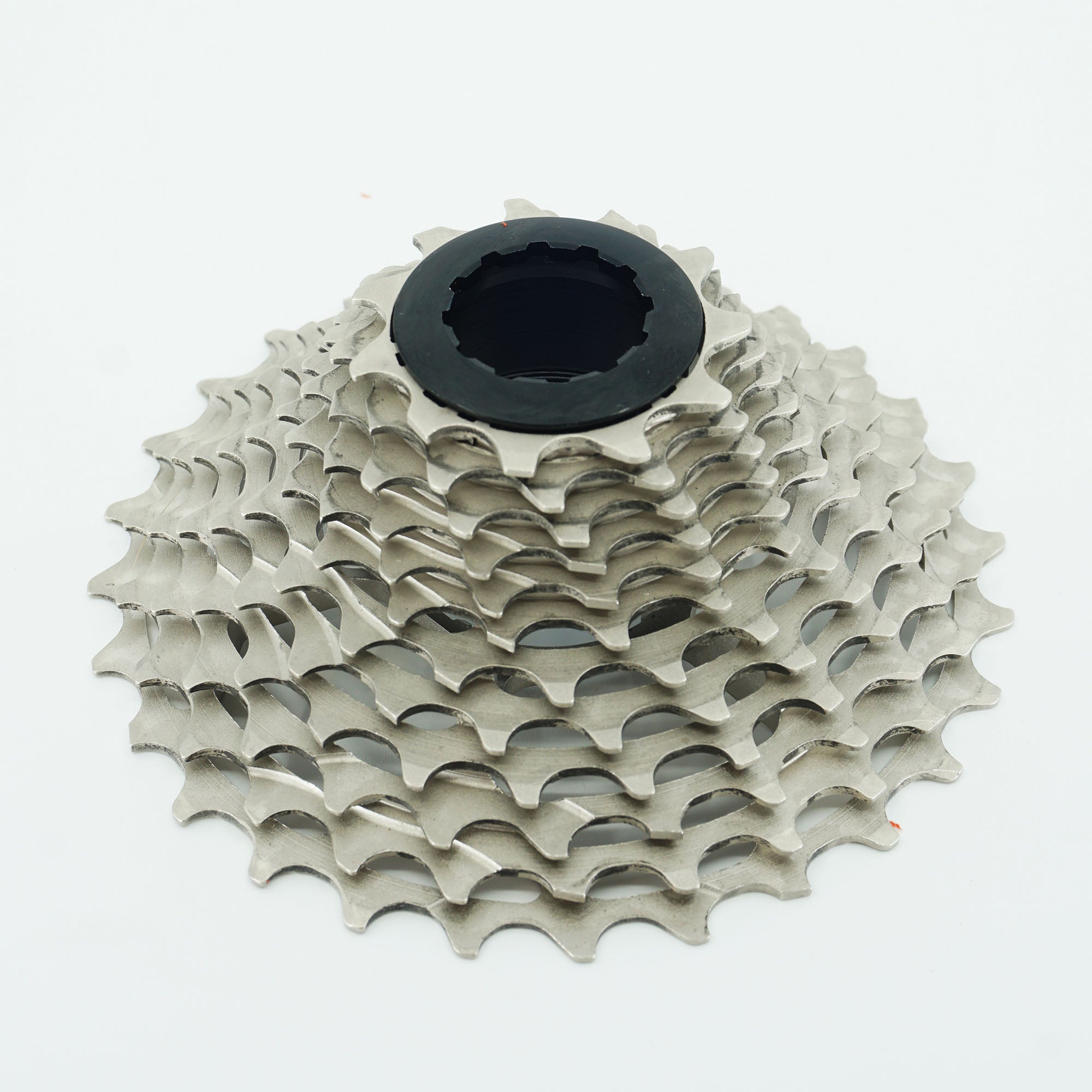

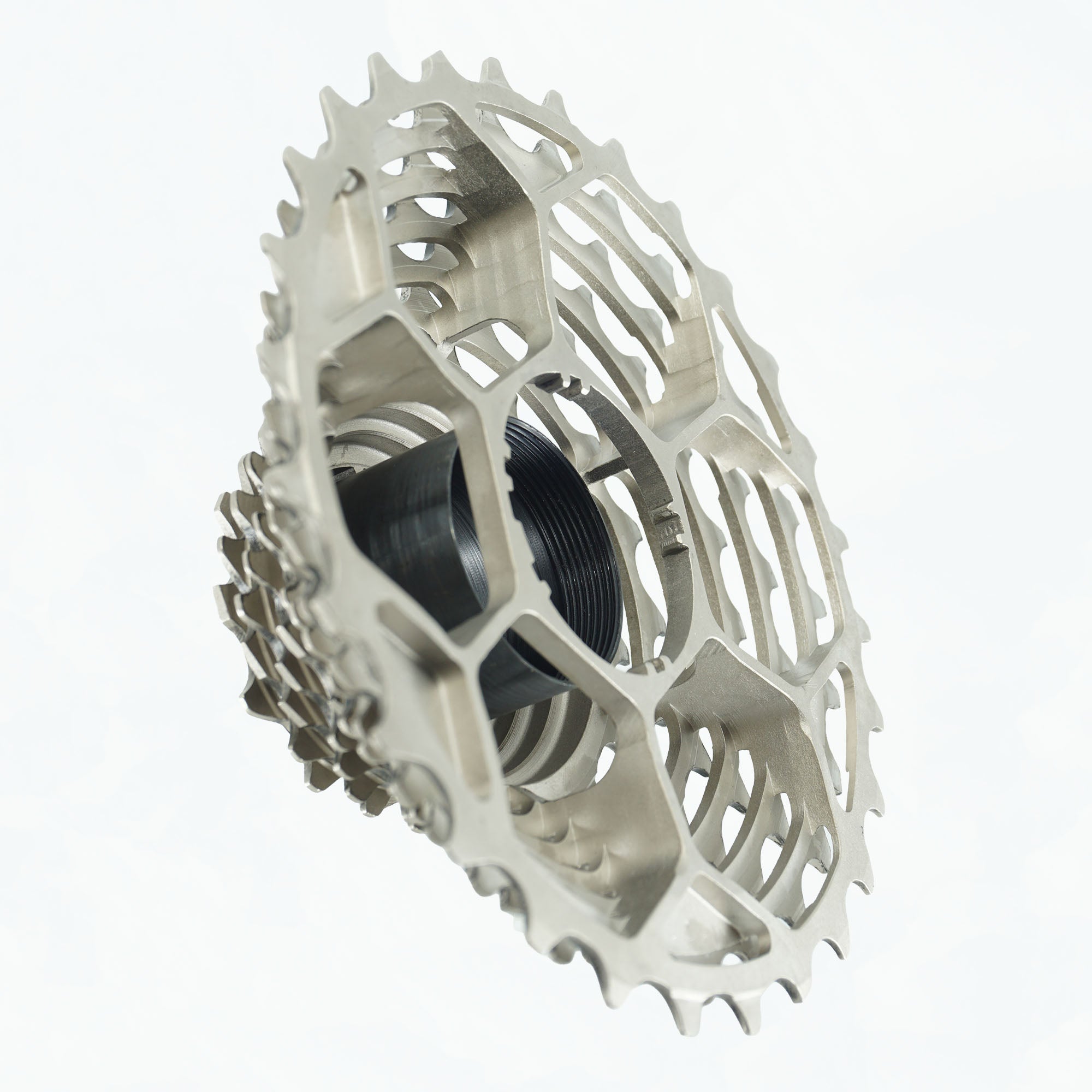

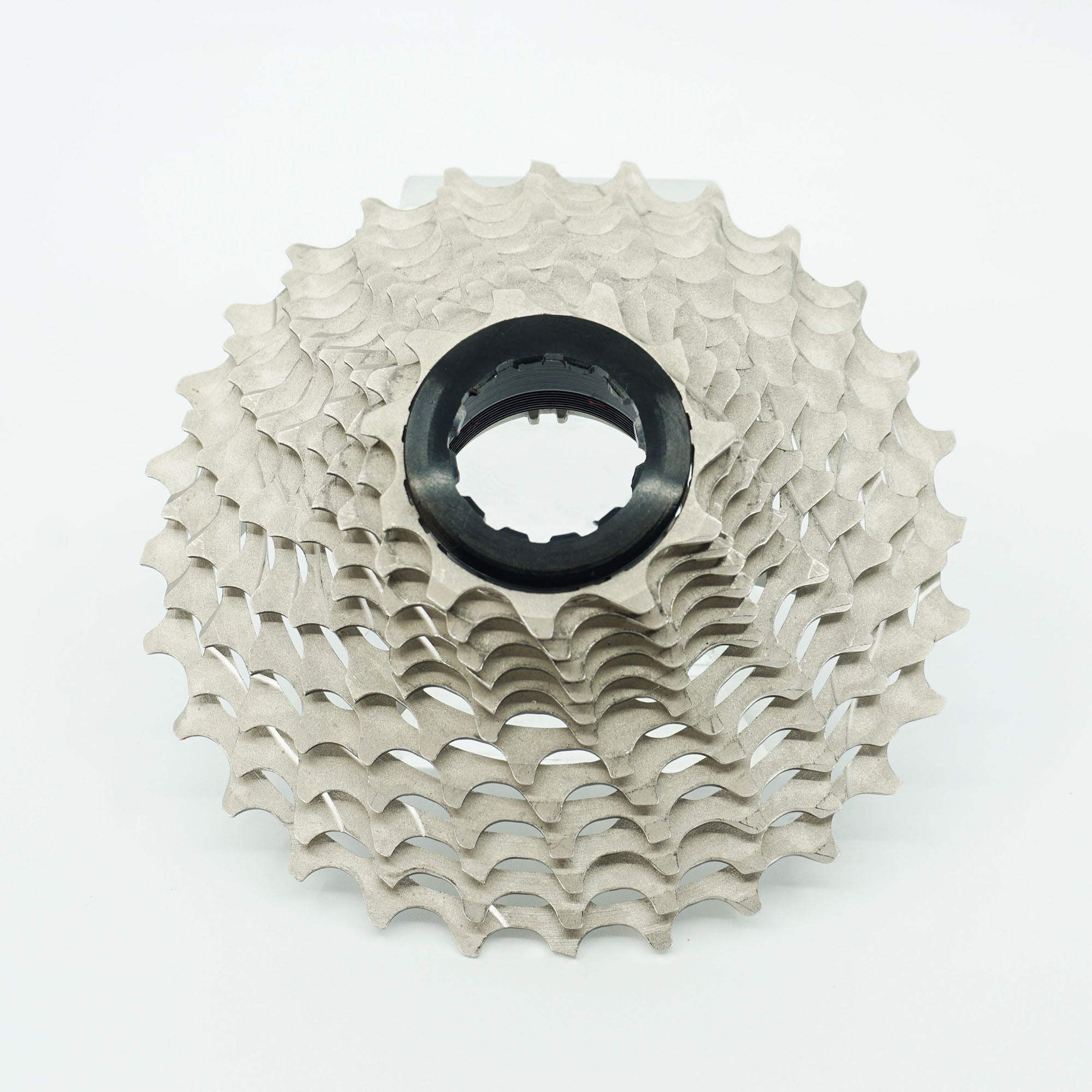

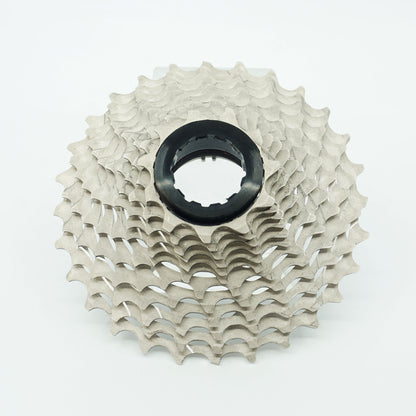

UniBlock PRO Cassette (12 Speed) (SRAM XDR)

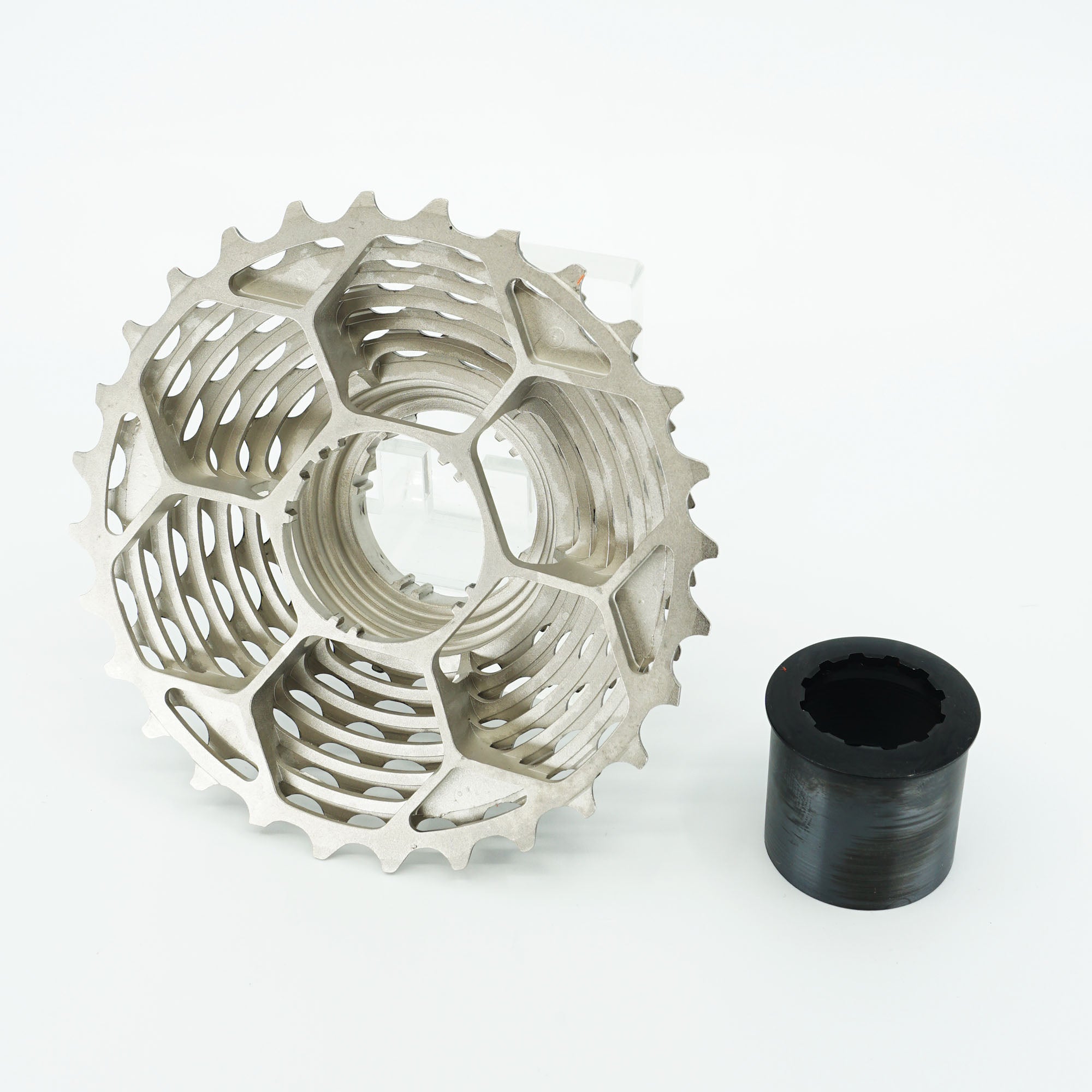

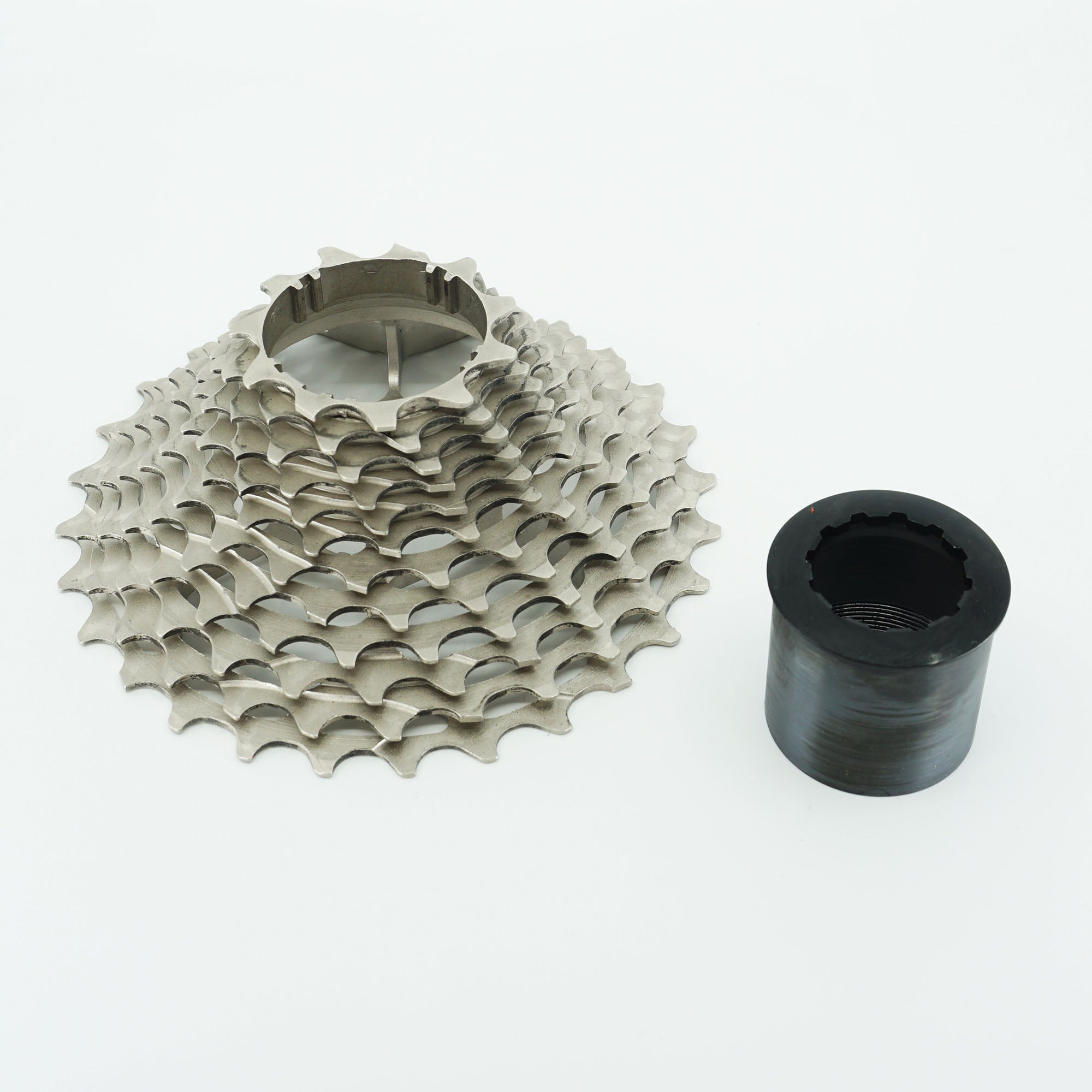

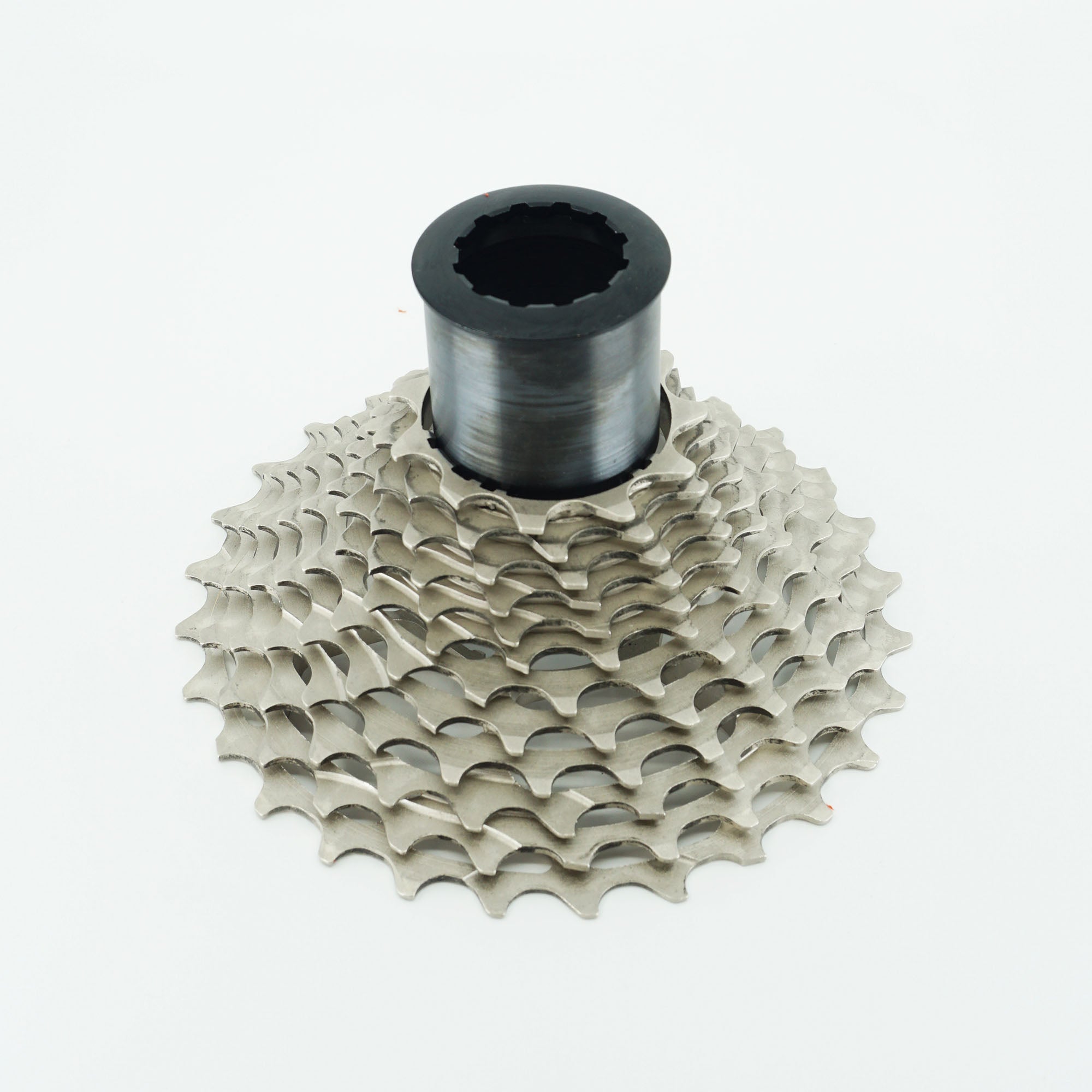

Bundle Includes:

• Uniblock PRO SHIMANO 12 speed Cassette (select gear range)

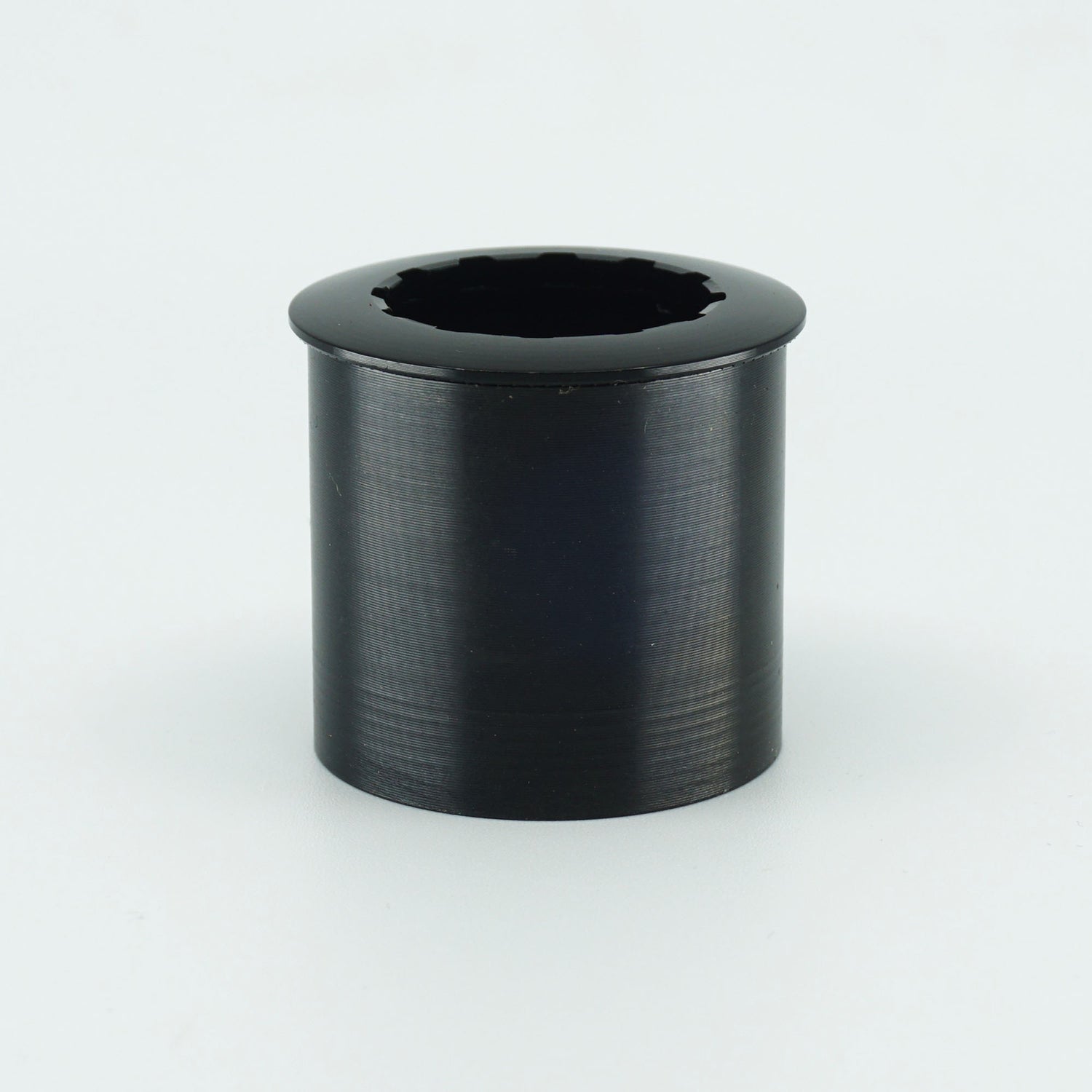

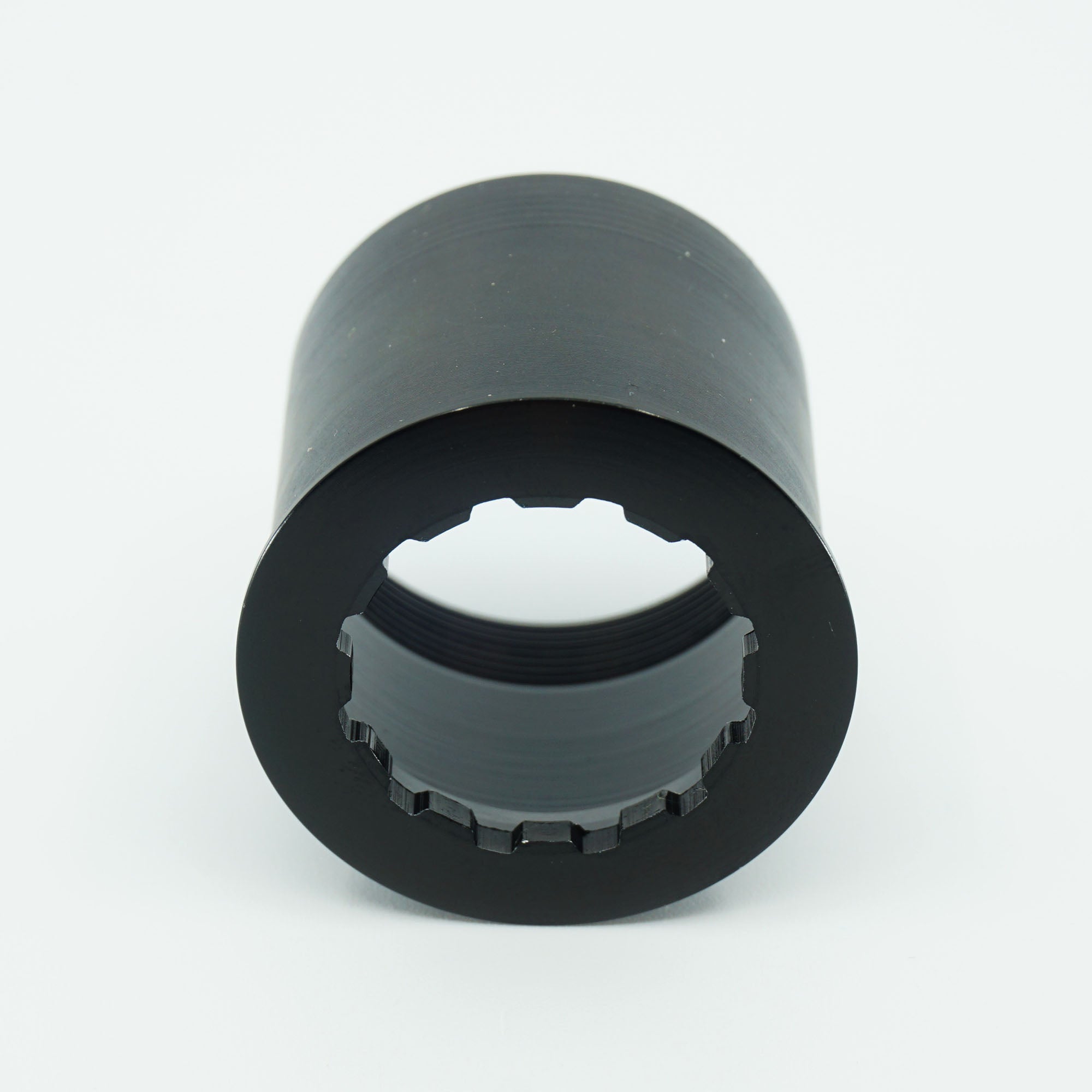

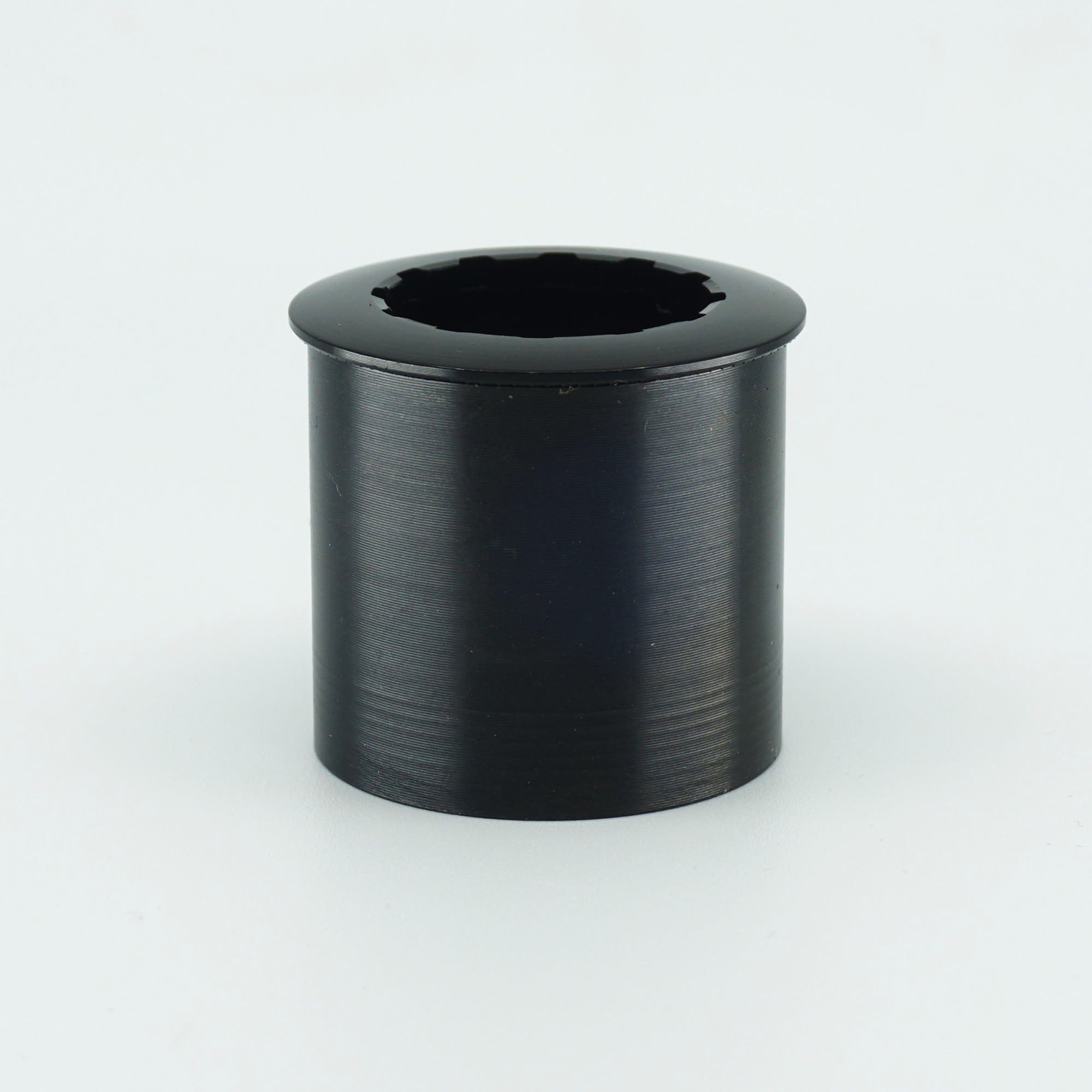

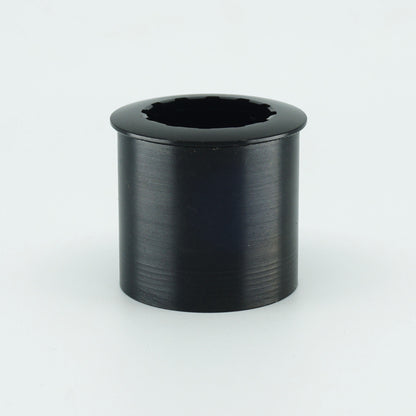

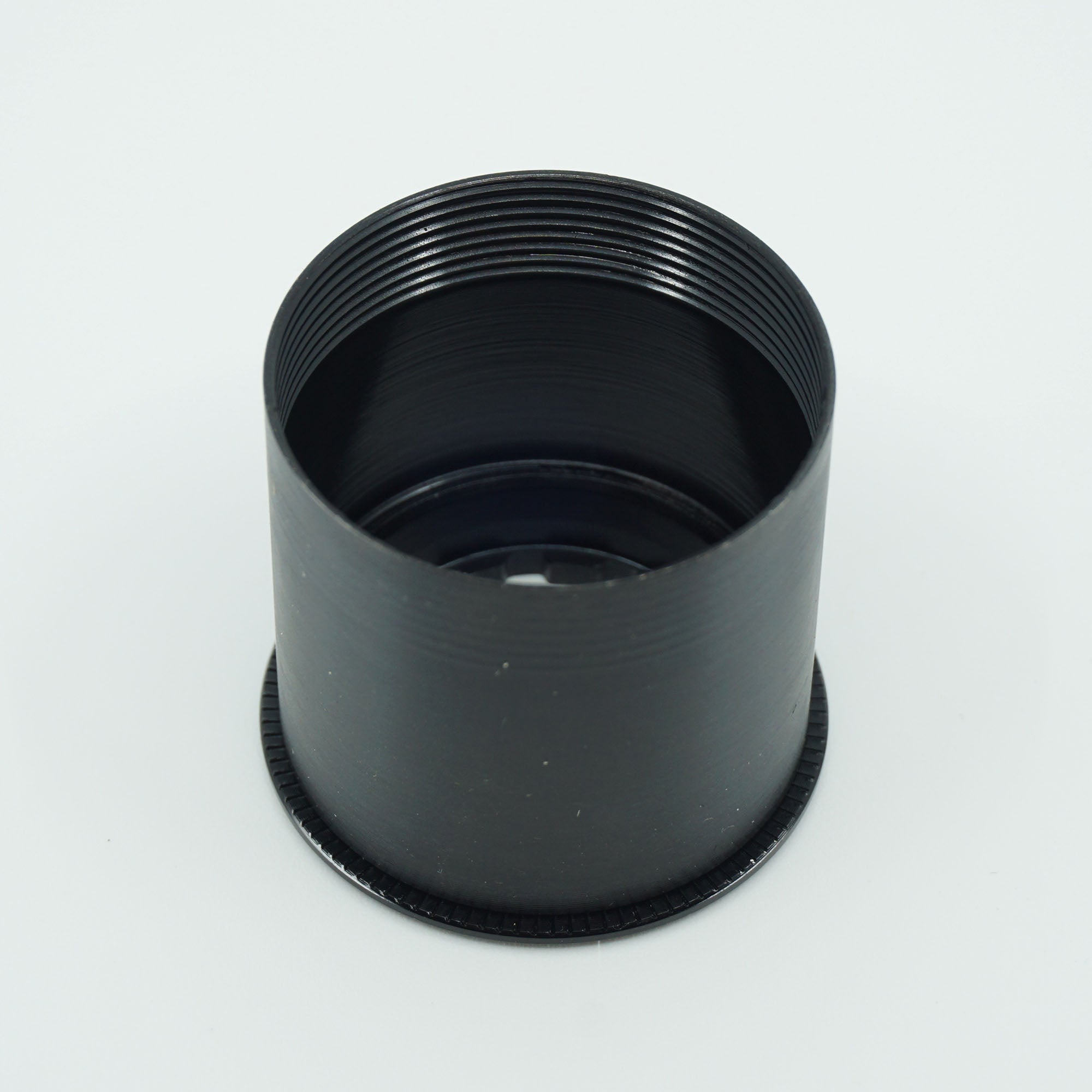

• XDR Adapter Lockring

COMPATIBILITY

• GEARS: 12 Speed
• SHIFTING: SRAM
• FREEHUB: XDR


PERFORMANCE

• Maximum Performance 12 Speed Shifting
• Interchangeable performance on all Drivetrains
• Ultra-Strong ChroMoly 3D Structure
• Ultra-Light – less material needed
• Larger, better-distributed Freehub engagement
• Easier to Clean
• Steeel XDR locknut included

11-25T:

Ratios: 11-12-13-14-15-16-17-18-19-21-23-25
Weight: 151 g

11-28T:

Ratios: 11-12-13-14-15-16-18-20-22-24-26-28
Weight: 185 g

11-30T:

Ratios: 11-12-13-14-15-16-17-19-21-24-27-30
Weight: 182 g

11-32T:

Ratios: 11-12-13-14-15-16-17-19-22-25-28-32
Weight: 185 g

11-34T:

Ratios: 11-12-13-14-15-17-19-21-24-27-30-34
Weight: 204 g

11-36T:

Ratios: 11-12-13-14-15-17-19-21-24-28-32-36
Weight: 218 g

11-40T:

Ratios: 11-12-13-15-17-19-21-24-28-32-36-40
Weight: 320 g

Greater Freehub Engagement, Smoother Operation

Single block design insures the freehub has MORE engagement no matter what gear your are in. Single cogs from other Cassettes can cut-like-a-knife into freehubs. By increasing and distributing engagement across the entire freehub in any gear, we are reducing torsional loads thus reducing freehub wear and insuring lowest rolling resistance within the freehub. This also makes our Cassettes the safest to use with high-end alloy freehubs. Without any spacers in UniBlock, there is nothing to loose, and nothing you can install incorrectly. Faster cleaning on and off the bike, with quicker, mistake-free installation insures you are ready-to-go!

New ARC™ (Advanced Radial Curve™) Shifting Technology

Prestacycle introduces UniBlock Pro cassettes with ARC™ Shifting tooth profiles. UniBlock Pro ARC™ is our own unique, all-new shifting profile that provides shifting characteristics equaling or improving upon shifting performance for every major brand. We've performed extensive analysis of all major shifting systems. Our results show that due to how narrow chains have become, chains offer only small differences that contribute to shifting performance. Meanwhile, a great deal of varying technologies exist in cassette tooth profiles from major drivetrain manufacturers creating different specific benefits in one system or another. By examining the demands and benefits required by each particular drivetrain, we've been able to create a new system with the benefits of all drivetrains using one new design, creating all advantages to all systems. Our new design facilitates the fastest, smoothest possible shifting to all systems while minimizing the impact to power delivery.

Going deeper, we've optimized every single tooth pairing on every cassette. A shifting profile from a 16T-to-17T cog is different from a 15T-to-17T cog on a different cassette. These exact-match pairings for both up-and-down shifts provide the highest possible speed and reliability in shifting. Even shifting under load is maximized. Our new Professional cassettes create a new generation of compatibility and enhanced shifting performance.

Q: What drivetrain brands are compatible?

A: We offer UniBlock PRO cassettes for:

• Shimano (10, 11, and 12-speed)
• Campagnolo (10, 11, and 12-speed)
• SRAM XDR (12-speed)

Q: How do I know which UniBlock cassette I need?

A: You need to know three things:

• Your drivetrain speed (10, 11, or 12-speed)
• Your drivetrain brand (Shimano, Campagnolo, or SRAM)
• Your freehub body type (HG, XDR, Campagnolo, etc.)

Q: What is a UniBlockPRO Cassette?

A:UniBlockPRO is a single-piece cassette design that provides precise shifting, reduced weight, and easier installation/removal compared to traditional multi-piece cassettes. The entire cassette is machined as one unit for superior performance.

Q: What is an XDR freehub?

A: XDR is SRAM's freehub standard for 12-speed cassettes with smaller 10-tooth cogs. It's slightly longer than standard XD to accommodate road gearing.

Q: How much lighter is a UniBlock cassette?

A: Weight savings vary by model and speed, but the single-piece design typically reduces weight by eliminating spacers and excess material while maintaining strength

Always adjust shifting for any new Cassette

While Tooth gaps and shifting profiles are optimized for all systems, re-adjustment may be necessary. Various brands of freehubs can cause small variations in cassette positioning.

Confirm Compatibility with your derailleur

Not all derailleurs are compatible with all gear ranges. Please verify if your derailleur is compatible with the largest tooth size, and cog gaps that you are ordering. Electronic shifting systems are the most picky about working with gear ranges not offered by the Original Manufacturer.
