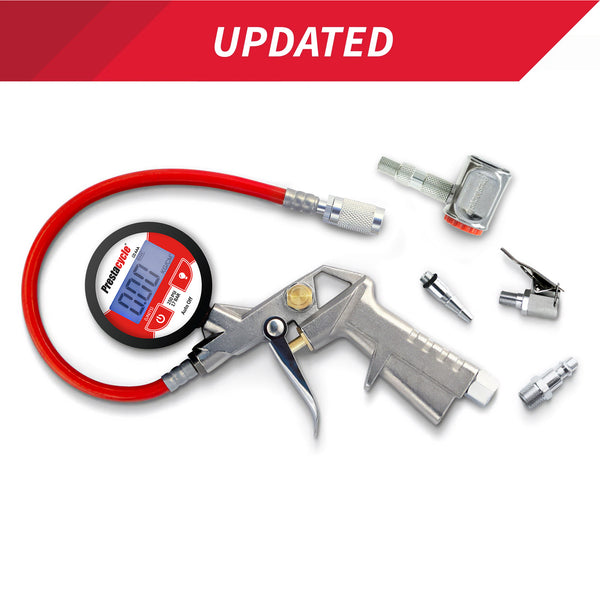

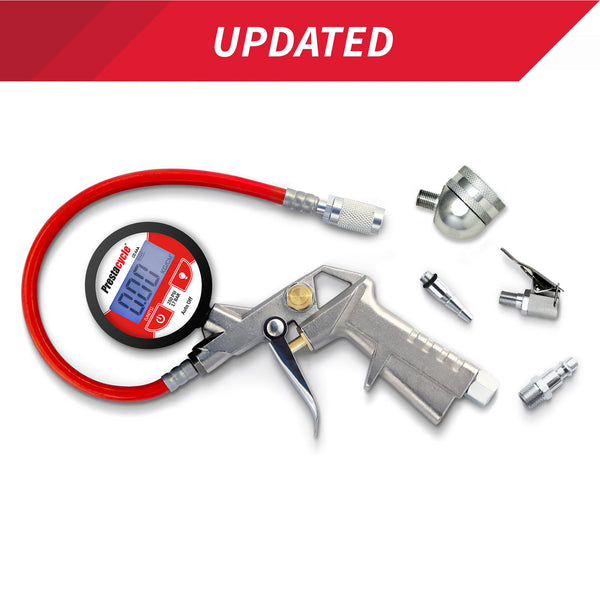

Prestaflator Digital Bicycle Tire Inflator - Presta & Schrader Air Compressor Tool

NEW patent-pending Big Angle Head

The our new head uses a larger diameter stepped Urethane insert for easier installation and tubeless-safe gentle removal.  It also provides a more secure seal and longer life.  The depth of the new head is designed so you can push-past the first detente, and then the Presta pin will be pressed internally so you can see an accurate pressure reading for the tire.

Inflate tires accurately in seconds!

The new Prestaflator Digital is made possible by our new Rapid Response™ Digital Gauge.  During inflation, the gauge is capable of showing immediate changes in pressure, enabling fast inflation – now with supreme accuracy. The gauge uses highly accurate, non-wearing circuitry for pressure readings, so it does not wear-out or loose accuracy like traditional Dial gauges.  Highly accurate readings are across the whole range, making this tool excellent for Fat Tire, Cyclocross, MTB as well as Road Bikes.  Easy screwdriver replacement of the two CR2032 batteries (included).

Excellent Air Flow control.

The Prestaflator is designed with a long-throw trigger valve. Use a light squeeze or brief, rapid shots to gently inflate Bike tires to your desired pressure over a few seconds. A full squeeze on the trigger provides maximum pressure for seating tubeless tires. Designed for MTB & Road tires with a wide range of pressure requirements.

Quick-Click2™ Head for Tubeless & removable cores.

The Prestaflator Head includes a removable cap with our Quick-Click™ push/pull head. Quick-Click™ is the fastest and easiest Presta valve connection. Our original Quick-Click™ and our new Quick-Click2™ heads should be used with all Tubeless applications and any tubes with removable valve cores.

1way / 2way Presta Inflation Head inside.

Inside the Prestaflator head is our 1 way / 2 way Spin-on Presta design for inflating and deflating tires with traditional Presta valves. A few quick turns secures the head to the cap threads on the Presta valve and provides an air-tight seal. It has an internal sliding-action. Push the hose towards the head to push the Presta valve air release button without removing the head. This allows the Prestaflator to take a tire pressure reading without being connected to an Air Compressor. It can also let air out of the tire by simultaneously pushing the hose and pressing the air release button on the side of the Prestaflator handle. When you inflate or take a pressure reading, the head automatically slides back away from the Presta button. This returns the Presta valve to it’s natural one-way operation. This means there’s absolutely NO pressure loss when you disconnect the head from the tire.

• Machined Brass internals for superior inflation accuracy
• Rapid Response™ Digital Gauge.
• 255 PSI (in 0.1 PSI increments).
• 17 Bar (in 0.01 Bar increments).
• Also provides measurement in MPA and KG/CM units.
• Perfect for low pressure Readings!
• Uses two AAA Batteries, screwdriver replacement.
• Works as a pressure checker w/ 2way head.
• Variable-rate trigger!
• Presta AND included Schrader!
• Professional shop-grade tool.
• 6061-T6 Alloy Presta Head.
• Replaceable I/M compressor quick-release attachment.
• Rubber pressure gauge housing for shock protection.
• Cast aluminum pistol grip handle with bead-blasted finish.
• Two-finger trigger valve for precise air flow regulation.
• Thumb-control pressure release button.
• Braid-reinforced hose is our strongest, most flexible hose.
• Head accepts many thread-on accessory Heads.

Disclaimers

Air compressor and air hose with quick release connector required for use – not included.
Maximum air pressure is limited by your compressor’s capabilities.

Weight .75 lbs

Dimensions10 × 5 × 2 in

Quick-Click2™ has the best seal plus the easiest installation & removal of any Disc head. Smallest head – fits ALL Disc wheels. Works so well it’s an everyday-use Presta head. Right-angle design is great for tight areas with Standard Schrader air valves. Firm spring clip holds at high pressures. Low profile design fits Kids bikes, Scooters and Motorcycles. The Big Quick-Click™ push/pull Tubeless Presta head works with or without the valve core removed for high flow tire seating. Shop duty for long-life Presta inflation. Prestacycle 1/4″ I/M 6061-T6 Alloy Quick Coupler Kit upgrades all your air tools to Prestacycle quality. 1/3 the weight of Steel or Brass, makes your air hose easier to handle.

Quality

Prestaflator is engineered specifically for the needs of bicycles and bicyclists. Only top quality materials are used for it’s components. We start with a cast Aluminum body and give it a bead blasted finish. Next we use 6061-T6 Alloy, Chrome and Stainless Steel components for all connectors and moving parts. The hose is made of reinforced polyurethane. It’s 3X more flexible than our original Black hose and is rated for 300 PSI of continuous use. Smooth alloy clamps on the hose are more comfortable for use of the spinner head and are corrosion resistant.

Prestaflator’s unique variable-rate trigger plunger is long and narrow. Behind the trigger is a high-force spring. This allows the user to more easily regulate very small amounts of air to reach the exact pressure desired in even the smallest racing tires.

Serviceability

Prestaflator is designed to offer years of reliable service. The body has a ¼” male threaded adapter so you can install many types of connectors. It comes with the most commonly-used ¼” I/M Quick Coupler in the box and ready to install with no tape or glue needed.

The hose, trigger and pressure release mechanisms are all threaded and installed using #7 O-Rings. They can all be removed and serviced with a 14 mm wrench. We offer rebuild kits so you can service and maintain your Prestaflator anytime.

The Presta / Schrader heads and couplers are made of 6061-T6 Alloy. They’re as strong as Brass, but only 1/3 the weight. This is no place for plastic. Drop your hose on the concrete with plastic pump heads and they could break. The Presta head connects to your tire valve with our new improved easy-on easy-off “Urethane pump head gasket”. Replacements are available on our website or through any cycling supply source.

Prestaflator – The Original

Beware of fakes and cheap imitations sold by one-product sellers.  These are not real brands that can stand behind your product.    Prestacycle is the originator of the Prestaflator.  We are a full-line Bicycle tools company providing the Cycling industry globally with world-class tool designs.  Our R&D has created a proven design that we have consistently improved-upon through years of experience.

Prestaflator is different… a high quality, serviceable tool… designed, built and warranted for use on Bicycles.

Prestaflator warrants all air tool products manufactured by Prestaflator to be free of defective material or workmanship for one (1) year, and under the conditions stated herein. This warranty is expressly limited to repair or replacement of product found to be defective. Prestaflator assumes no liability for loss due to failure of any product to perform satisfactorily. Prestaflator makes no other warranty, expressed or implied, except that of title. Any and all other warranties are expressly disclaimed.

This warranty applies under conditions of intended use and is exclusive of equipment subjected to: Failure to follow recommended assembly and service procedures, Lack of proper maintenance, excessive duty cycle, exposure to the elements, shipping damage and modification not authorized by Prestaflator. No warranty claims will be honored without prior authorization for repair from Prestaflator. Any replaced or repaired equipment will be warranted for the remainder of the warranty term only.

This product can expose you to chemicals including Nickel (Metallic), Lead, Diisononyl Phthalate (DINP), Urethane (Ethyl Carbamate), 1,3-Butadiene or Styrene, which is known to the State of California to cause cancer or reproductive harm.

For more information, go to www.P65Warnings.ca.gov.

Prestacycle Statement:

• Products made with Stainless or Plated Steel contain Nickel (Metallic).
• Products made with Brass contain Federally accepted trace amounts of Lead.
• Most soft Plastics including Vinyl contain Diisononyl Phthalate (DINP) .
• Buna Rubber contains1,3-Butadiene and Styrene.

Prestacycle manufactures it’s products with these materials as they are the highest standard available to manufacture these products to suit their purpose. Prestacycle does not dispute any of the findings made by California or the Federal Government. The health and safety of our customers is very important to us. We will always take every step possible to insure our products are as safe as possible.
